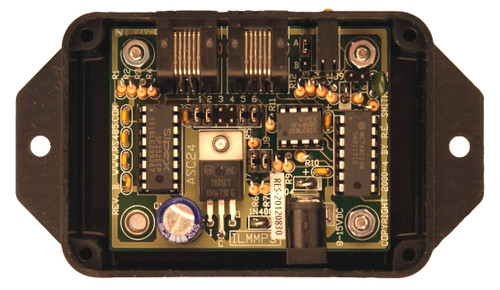

ASC24R-B9FSPS - RS232 to RS485 (Bidirectional) Converter


Product Description

RS232 to RS485 Bidirectional Converter with 12v Power Supply & DB9F adapter w/7ft. cable in Boxed Enclosure.

  • This auto transmit unit features Bi-directional serial conversion from RS232 to RS485 in 2 wire half-duplex communications mode.
  • Optimized for non-isolated office/indoor point to point or multi-drop systems.

  • Transparent to all asynchronous data, with any combination of data, parity, and stop bits, at data rates up to 115.2Kbps.

  • Fast auto turn-around, from transmit to receive mode, requires no software delays and eliminates timing problems and data collisions. A special jumper(J9) can further shorten the turn-around time to accommodate fast responding target devices. We pioneered this leading edge technology long before our competition.

  • The RS485 driver, with built in electro-static protection, allows 32 standard loads at 4000 ft. and data rates up to 115.2 Kbps.

  • Jumpers allow the RS485 termination and bias resistors, and the RS232 DTE/DCE mode to be user configured. Jumper J10 will place the unit in Loop-Back mode for self test.

  • Edge mounted LEDs display power and data activity. The functionally identical RSFC24R/W series of converters do not incorporate these LEDs.

  • A polarity protected linear power regulator accepts supply voltages from 8 to 15 VDC, at 0.5 Watts max.

  • Broad environmental range. Temperature: -40C to +85C(-40F to +185F). Humidity: 10 to 90% RH(non-condensing)

  • Four(4) easy mount through hole standoffs, which accept #6 hardware, are provided on the circuit board.

  • User connections are an RJ11/12 telephone style for the RS232, an RJ11/12 telephone style (R suffix), or a Wago style (W suffix) connector for the RS485 port, and a 2.1 mm barrel connector(power). Refer to the "Options and Ordering Information" below.

  • Accessories available are a 12VDC Switching Power Supply(Wall Wart), an enclosure, and a 7ft DB9F to RJ11/12 RS232 cable.

Click here for more information about the ASC24R RS232 to RS485 2 Wire Half Duplex Bidirectional Converter!
