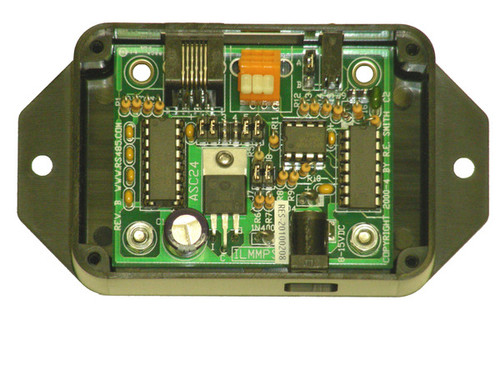

ASC24W-B9FSPS - RS232 to RS485 (Bidirectional) Non-isolated Converter


Product Description

ASC24W RS232 to RS485 Bidirectional Converter w/ 12V Power Supply & DB9F Adapter w/ 7ft. Cable in Boxed Enclosure.

  • Fast Automatic half-duplex RS232 to RS485 (Bidirectional) 2-Wire Converter

  • Data Rates up to 115.2Kbps @ 4000ft, with Auto TX Enable

  • Fast turn around to RX Mode eliminates timing problems

  • No "data collisions," and no time delays required

  • Standard and non-standard data rates OK, Automatic timing

  • Any combination of Baud Rates and ComSpec is OK

  • LED Indicators for RS485: Power(YEL), TXD(RED), RXD(GRN)

  • 22 Ohm drive protection resistors, and ESD protection

  • Wide Input Voltage Range: 8-15Vdc (Linear Regulator). 0.5W typical

  • Jumpers for Bias, Termination, Test, DTE/DCE, Speed-up

  • Operating Temperature Range: -40C to 85C (-40F to 185F)

  • Humidity Range: 10% to 90% Relative Humidity (Non-Condensing)

  • Conformal Coating Available(Call us: 513-874-4796)

Click here for more information about the ASC24W RS232 to RS485 (Bidirectional) 2-Wire Half Duplex Non-isolated Converters!
Questions? Call  513 874-4796
