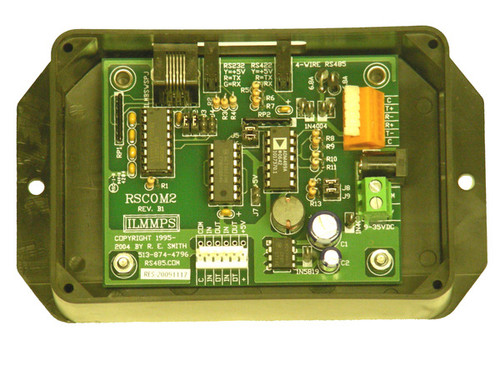

RSCOM2-B9FSPS - RS232 to RS422, RS232 to RS485 (using RTS), and TTL / CMOS to RS232 / RS422 / RS485 Serial Converter

$91.00
Quantity:

Product Description

RSCOM2 - RS232 to RS422,  RS232 to RS485 (using RTS), and TTL / CMOS to RS232 / RS422 / RS485 Bidirectional Serial Converter with Wago terminals and RJ11/12 connectors w/ Power Supply & DB9F Adapter w/ 7ft. Cable in Boxed Enclosure.

  • This auto transmit unit features RS232 to RS422 bidirectional 4 wire full duplex conversion with an intermediate CMOS/TTL tap point.
  • The RS422 drivers allow 32 single unit loads at 4000 ft. and data rates up to 115.2 Kbps on the port.

  • Robust transient suppressors, and series resistors, help protect the RS422 transceiver from destructive transients often found in industrial and outdoor environments.

  • Transparent to all asynchronous data, with any combination of data, parity, and stop bits at data rates up to 115.2Kbps.

  • Edge mounted LED Indicators for power and data on the RS232 and the RS422 port.

  • An efficient onboard polarity protected power regulator accepts supply voltages from 9 to 35 VDC, at 1.5 Watts max.

  • Jumpers allow the user to remove the 120 ohm RS422 termination resistors, select the RS232 DTE/DCE mode, and enable the CMOS/TTL tap point.

  • The user connections are: a 6 position Wago style terminal strip(RS422), a 2 pin terminal strip/2.1 mm barrel connector (power) and a 6 position pin header (CMOS/TTL).

  • The versatile CMOS/TTL tap point enables the unit to be used is a full duplex converter to either the RS232 port, or the RS422 port.

  • Broad environmental range. Temperature: -40C to +85C (-40F to +185F). Humidity: 10 to 90% RH (non-condensing).

  • Four (4) easy mount, through hole standoffs, which accept #6 hardware, are provided on the circuit board.

  • Conformal Coating Available (Call us: 513-874-4796)

  • Accessories available are an enclosure, a 12VDC Switching Power Supply (Wall Wart), and a 7ft DB9F to RJ11/12 RS232 cable.

  • We also make isolated converters for use in environments that subject the equipment to higher levels of electrical interference.

Click here for more information about the RSCOM2 RS232 to RS422, RS232 to RS485 (using RTS) and, TTL / CMOS to RS232 / RS422 / RS485 bidirectional converter!

Questions? Call 513 874-4796

MORE DETAILS: click here
